UF ULTRAFILTRATION SYSTEM

UF Ultrafiltration system is capable of removing up to 99.9% of bacteria and viruses

Ultrafiltration system, also known as UF ultrafiltration system, uses a spiral H-PVDF polymer hollow fiber membrane. Membrane pore sizes range from 0.01 to 0.1 microns, typically 0.03 microns. Ultrafiltration columns are based on the principle of pressure filtration to separate particulate matter from dissolved compounds using ultrafine membranes.

UF systems are suitable for the following areas:

• Drinking water
• Raw materials for the production process, which require high requirements on water quality, are often used as pre-filters for RO in the following systems: Bottled water, beverage, food; Ultra-pure water for electronics, semiconductor industry…; Desalination system from salt water, brackish water…
• Recirculating water treatment (wastewater recycling)

UF processing capabilities:

• Membrane size 0.03 micro can remove over 99.9% bacteria & viruses.
• Make pure water with turbidity less than 0.1 NTU
• Output sludge density index SDI <3

Advantages of UF system:

• Finished water quality (turbidity, SDI) remains stable regardless of input water quality disturbances.
• Very high water recovery: 95%

• UF can directly replace the RO pre-filtration system (with relatively clean input water), providing higher quality RO pre-filtered water. Thereby reducing the requirement for RO membrane washing, reducing chemicals and wastewater, and increasing membrane life.
• Compact, space saving compared to traditional filter systems.
• Easy to customize, can add and remove modules directly when there is a change in flow or when replacing, maintaining and repairing without stopping the system.
• Low transmembrane pressure (1-6 bar) so less power consumption, optimal operating costs
• Wide operating pH range 6-9 (2-12 for membrane washing).
• The filter is chlorine resistant.
• The operation and washing system is highly automated, reducing labor costs.

Equipment description

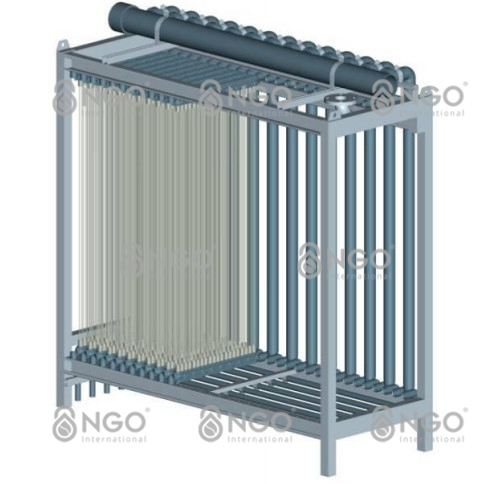

UF is typically modular in design consisting of hollow membrane fibers encapsulated within a PVC cover. These modules are positioned vertically on a slider that forms a system rack with pre-connected piping for easy transport and on-site installation. Depending on the current capacity and spare capacity, add or subtract the appropriate number of modules.

If your business is interested in solution to inlet water treatment, or has a demand for ion exchange materials, please contact NGO via phone number (024) 3566 8225 or email office@8ngo.com for direct consultation.
